In today’s fast-paced world, electricity powers almost every aspect of our lives—from lighting and appliances to communication devices and industrial machinery. While this convenience is invaluable, it also brings the risk of electrical hazards if systems are not properly safeguarded. That’s where modern electrical protection devices, such as the modular MCB and RCCB breaker, play a crucial role.
These devices are designed to ensure the safety of people, property, and electrical equipment. Whether you are a homeowner, business owner, or facility manager, understanding how these components work is essential to building a safe and efficient electrical infrastructure.

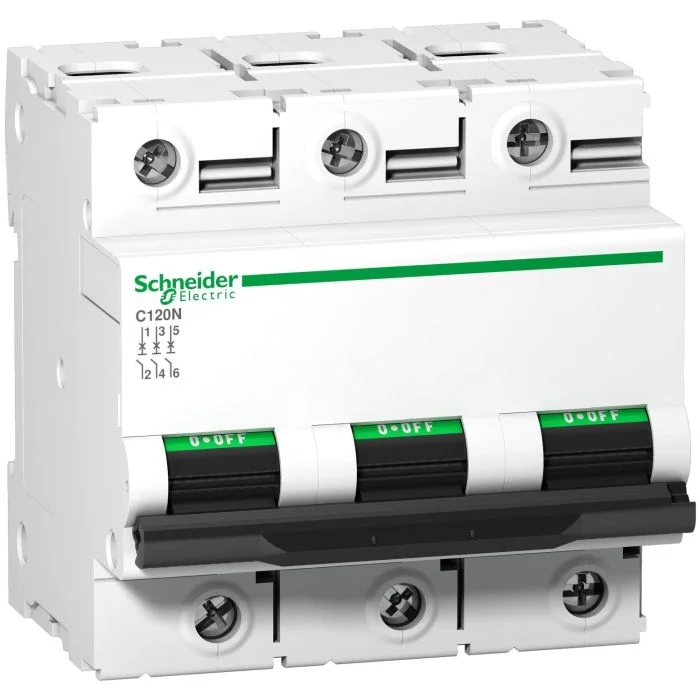

What is a Modular MCB?
A modular MCB (Miniature Circuit Breaker) is an automatically operated electrical switch designed to protect electrical circuits from damage caused by overloads or short circuits. Unlike traditional fuses, which must be replaced after a fault occurs, an MCB can be reset, making it a more convenient and reusable solution.
The term modular refers to the standardized design of the device, which allows it to be installed in a distribution board alongside other modular electrical device. This modularity makes maintenance and upgrades easier, while also providing a neat and organized installation.
Key Functions of a Modular MCB:
Overload protection: Prevents wires from overheating due to excessive current flow.
Short circuit protection: Instantly disconnects power in case of a fault that could cause damage or fire.
Convenience: Can be manually switched on and off, enabling easy isolation of circuits.
What is an RCCB Breaker?
An RCCB breaker (Residual Current Circuit Breaker) is a device that detects leakage current caused by insulation failure or accidental contact with live wires, and disconnects the power supply within milliseconds. Its primary function is to protect people from electric shocks and prevent fire hazards due to current leakage.
Unlike an MCB, which responds to overcurrent, an RCCB focuses on residual current—the difference between the current flowing into and out of a circuit. If there’s a mismatch, it indicates that some current is leaking, potentially through a human body or damaged wiring.
Key Functions of an RCCB Breaker:
Human safety: Protects against electric shocks by detecting current leakage as low as 30 mA.
Fire prevention: Stops leakage currents that can cause electrical fires.
System protection: Enhances the safety of sensitive electronic equipment.
Difference Between Modular MCB and RCCB Breaker
Although both devices are crucial for electrical safety, their functions differ significantly:
Purpose
Modular MCB: Protects circuits from overcurrent and short circuits.
RCCB Breaker: Protects people from electric shocks and prevents current leakage.
Detection Mechanism
Modular MCB: Operates based on thermal and magnetic tripping mechanisms.
RCCB Breaker: Operates by detecting differences in current between live and neutral conductors.
Applications
Modular MCB: Used in both residential and industrial circuits to safeguard wiring and appliances.
RCCB Breaker: Installed where human contact with electrical systems is likely, such as homes, offices, and public facilities.
Why You Need Both for Complete Protection
For comprehensive electrical safety, it is recommended to install both a modular MCB and an RCCB breaker in your distribution system. The MCB protects against current overloads and short circuits, while the RCCB ensures protection against residual currents that could harm people or start fires.
Without an RCCB, even a perfectly functioning MCB may not prevent dangerous shocks caused by insulation failure. Similarly, without an MCB, your RCCB may trip frequently due to overcurrent, reducing its effectiveness and lifespan.
How a Modular MCB Works
A modular MCB operates using two key mechanisms:
Thermal Protection:
This function uses a bimetallic strip that bends when heated by excessive current. When the strip bends beyond a certain point, it triggers the switch to disconnect the circuit.
Magnetic Protection:
For short circuits, the MCB uses an electromagnet that creates a magnetic field strong enough to trip the switch instantly, cutting off power before any significant damage occurs.
How an RCCB Breaker Works
An RCCB breaker works by constantly monitoring the current flowing in and out of a circuit through its sensing coil. Under normal conditions, the current in the live and neutral wires should be equal. If there’s a difference—caused by current leaking through the ground or a person—the device quickly disconnects the circuit.
RCCBs are typically rated by:
Rated residual operating current (IΔn) – Commonly 30 mA for human protection.
Rated current (In) – The Maximum load current it can handle without tripping.
Selecting the Right Modular MCB
When choosing a modular MCB, consider:
Current Rating (Amperes): Choose according to the load of the circuit.
Breaking Capacity (kA): Determines how much fault current it can safely interrupt.
Trip Curve (B, C, or D): Specifies the response speed to overcurrent; residential circuits often use B or C curves.
Selecting the Right RCCB Breaker
When selecting an RCCB breaker, focus on:
Sensitivity: 30 mA for personal protection, 100–300 mA for fire prevention in industrial settings.
Pole Configuration: 2-pole for single-phase systems, 4-pole for three-phase systems.
Brand Reliability: Choose reputable brands to ensure consistent performance.
Installation Best Practices
To maximize safety:
Always install the RCCB upstream of the MCB in the circuit.
Ensure correct wiring of live and neutral conductors to avoid malfunction.
Regularly test the RCCB using its test button to confirm proper operation.
Keep circuits labeled for easy identification and troubleshooting.
Maintenance and Testing
Like all electrical devices, modular MCBs and RCCB breakers require regular checks:
Monthly RCCB Testing: Press the ‘Test’ button to ensure quick disconnection.
Visual Inspection: Look for discoloration, cracks, or signs of overheating.
Professional Servicing: Have a qualified electrician inspect your distribution board annually.
Common Misconceptions
“An MCB alone is enough for safety.”
False—while an MCB protects the wiring, it cannot detect current leakage that could be fatal.
“RCCBs trip unnecessarily.”
Frequent tripping may indicate a genuine fault, such as insulation damage or faulty appliances.
“Any RCCB works for all setups.”
Incorrect—selecting the wrong sensitivity or current rating can lead to inadequate protection.
The Future of Electrical Safety
With growing demand for energy efficiency and smart home integration, modular MCB and RCCB breaker designs are evolving. Newer models come with features like:
Remote monitoring and control
Integration with home automation systems
Enhanced durability and compact designs
These advancements make them not only safety devices but also part of a smarter, more connected electrical network.
Conclusion
Electrical safety should never be taken lightly, whether at home, in the office, or industrial facilities. A modular MCB and an RCCB breaker are indispensable for a well-rounded protection strategy. While the MCB guards your wiring and appliances against overloads and short circuits, the RCCB protects people from electric shocks and prevents current leakage-related fires.
For reliable and high-quality protection devices, Schneider Electric eShop offers a wide range of modular MCBs and RCCB breakers that combine advanced technology with trusted performance. Investing in these solutions is not just about compliance—it’s about ensuring safety, efficiency, and peace of mind for years to come.
