When it comes to industrial valve applications, it is important to choose the right material to ensure durability, performance and safety. Among many options available, PTFE valve seats and bronze filled PTFE are two widely used materials. Both these materials are variations of PTFE, but their properties and applications vary greatly. Understanding these differences helps industries to make informed decisions based on their needs. In this article, we will find out what sets them separately, their applications, and working with a reliable brand like Goa polymer can create all differences.

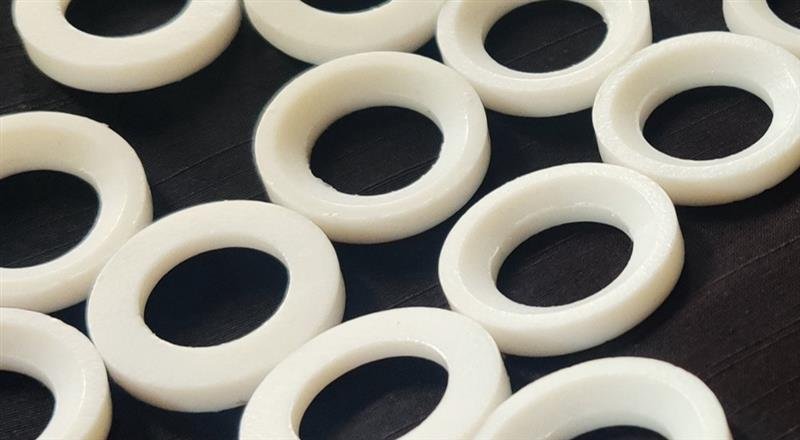

What Are PTFE Valve Seats?

PTFE valve seats are components made of pure PTFE (usually known as Teflon). They are widely used in valves due to exceptional chemical resistance, non-stick nature and low friction coefficients of PTFE. This makes them suitable for handling applications requiring aggressive chemicals, corrosive fluid and high purity.

Key Features of PTFE Valve Seats:

1. Chemical resistance – PTFE can withstand almost all chemicals, including acids, hideouts and solvents.
2. Non-sticks prevent surface – material construction, which is important in food and pharmaceutical industries.
3. Temperature tolerance – can handle a wide temperature range from -200 ° C to +250 ° C.
4. Low friction – reduces wear and tear, causing the valves to last long.
5. Excellent Insulation – Acts as an electrical insulator, is useful in some special processes.

Due to these properties, PTFE valve seats are usually used in industries such as chemical processing, oil and gas, pharmaceuticals and food processing.

What Is Bronze Filled PTFE?

Bronze PTFE is a holistic material made by combining PTFE with fine bronze powder. Typically, bronze materials are between 40% and 60%. Adding bronze improves ptfe’s mechanical strength and wear resistance, but it slightly Reduces its chemical resistance and non-health properties.

Key Features of Bronze Filled PTFE:

1. Better wear resistance – more durable than pure ptfe.
2. Increased load-bearing capacity-high pressure applications can be handled.
3. Better thermal conductivity – helps to spread heat more effectively.
4. Low deformation – maintains size under heavy loads and high temperatures.
5. Lower creeping – under pressure performs better in stable and dynamic applications.

Because of these properties, bronze filled ptfe is ideal for high-load, high-weight applications like mechanical seals, bearings, bearings, piston rings, and high-peerformance in Valve Seats in Demanding Conditions.

Key Differences Between PTFE Valve Seats and Bronze Filled PTFE

While both materials arise from PTFE, in addition to bronze, the performance characteristics of the material changes. Let’s break the main difference:

1. chemical resistance

PTFE valve seats: excellent resistance to almost all chemicals.

Bronze filled PTFE: Slightly low chemical resistance due to bronze material.

2. Strength and durability

PTFE valve seats: soft, less resistant to wear under high loads.

Bronze filled PTFE: very strong, better suited for heavy duty applications.

3. temperature resistance

PTFE valve seats: can withstand extreme cold and heat.

Bronze filled PTFE: Due to better conductivity, the high temperature is better handled.

4. Friction and lubrication

PTFE valve seats: extremely low friction, almost self-disdain.

Bronze filled ptfe: high friction than pure Ptfe, but more stable under load.

5. Application

Ptfe Valve Seats: Best for chemical, food, medicine, and cleaneom use.

Bronze filled PTFE: Automotive, aerospace and heavy machinery.

Applications in Different Industries

• PTFE valve seats – commonly used in industries where purity, non-stick surfaces and corrosion resistance are important. For example, in pharmaceutical valves, they prevent contamination and ensure clean operations.
• On the other hand, bronze – filled PTFE is used, where valves or components face high pressure, continuous movement and heavy loads. For example, in oilfield applications and heavy duty pumps, its stability provides better performance than pure PTFE.

Why Choosing the Right Material Matters

Choosing between PTFE valve seats and bronze -filled PTFE depends on your industry’s operational requirements. Choosing incorrect material can lead to premature valve failure, contamination or high maintenance costs. This is the place where expert guidance from reliable suppliers becomes necessary.

Goa Polymer: A Trusted Partner for PTFE Solutions

When it comes to PTFE filled with high quality PTFE valves and bronze, Goa Polymer has created a reputation to provide excellence. With years of expertise, Goa provides custom-engineer solutions for industries ranging from polymer pharmaceuticals to oil and gas.

By working with Goa polymer, customers benefit:

• High quality materials that meet global standards.
• Adaptation options for matching specific industrial needs.
• Technical expertise in guiding customers on the best content choice.
• Reliable supply chain ensures frequent availability.

Conclusion

Both PTFE valve seats and bronze -filled PTFE play an important role in industrial valve applications, but their qualities suit them for different situations. PTFE valve seats excel in chemical resistance and purity, while bronze-filled PTFE is unmatched in strength, wear resistance and high-load performance.

The industries seeking long lasting, reliable and efficient solutions should carefully evaluate their needs before selecting between the two. With the expertise of reliable suppliers such as Goa Polymer, businesses can ensure that they get the right material for the correct application, which leads to better performance, safety and cost savings in a long time.
